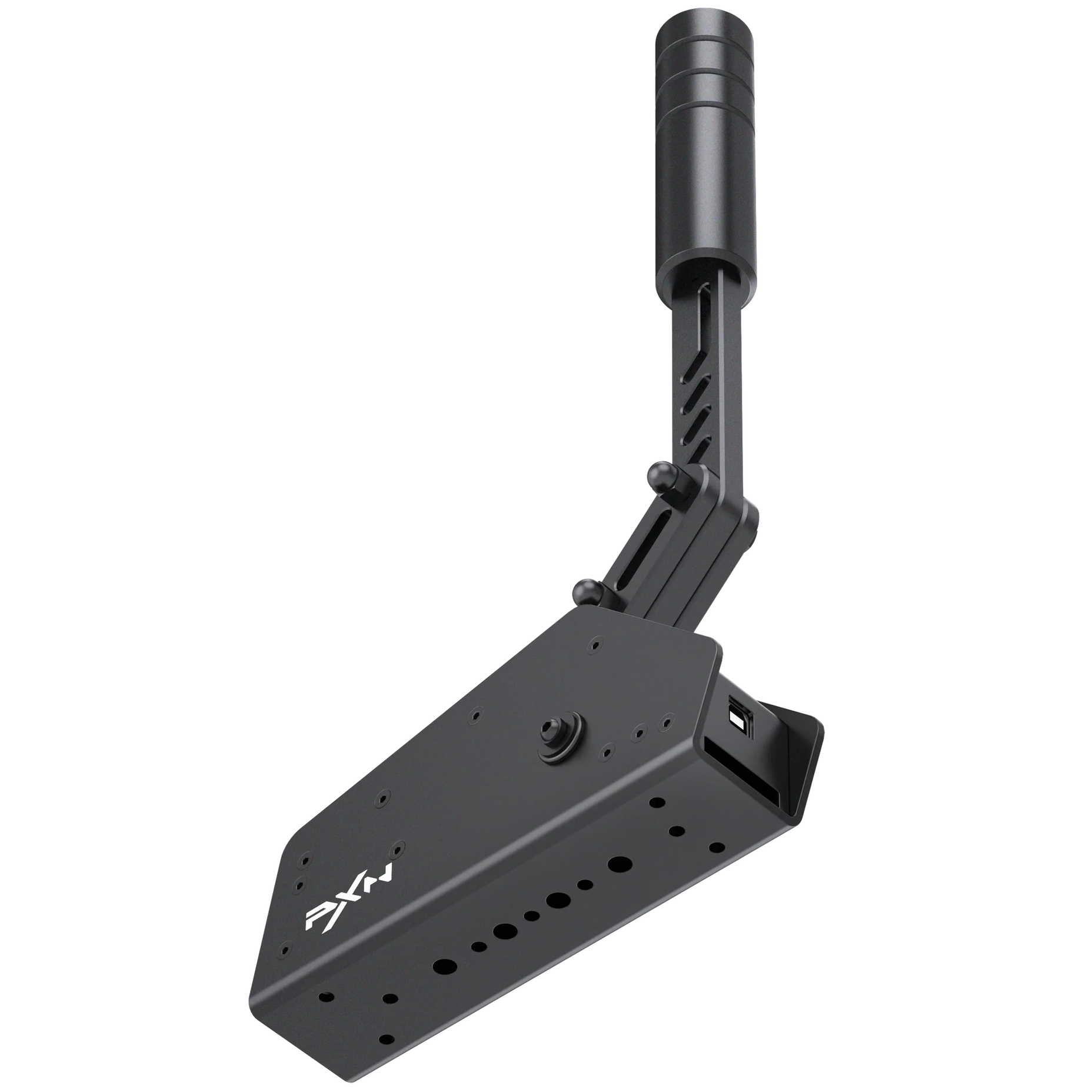

Speeding ahead. Ready at your fingertips – HBS Handbrake
Premium Material: The whole handbrake is made of aluminum alloy, which is safe and reliable. 16-bit high-precision sensors adopts Hall-effect precision technology increases the brake feel of racing and provides you the same realistic experience with the real car (Do not include a fixed clip, suitable for use on stands only).
Feature
- Aluminum Alloy Material
- 16-bit High-precision sensor
- Intensity/stroke adjustable
- Dual mode grip switching
- Plug and Play on PC
- USB interface
High Hardness Aluminum Alloy Technology
After high-heat and alloy strengthening, the aluminum alloy’s tensile strength is comparable to low-carbon steel, and its surface possesses a dense oxide film, providing excellent corrosion resistance and compression resistance.
16-bit High-precision Sensor
Built-in 16-bit resolution magnetic encoder.
Non-contact design enables faster and more stable linear transmission.
Significantly extending the lifespan.
Adjustable: Support the adjustment of strength and stroke. You can experience different handbrake force by changing different springs or damping rubber, and the default travel of the handbrake is 16mm, you can adjust the handbrake travel to 10mm by replacing the part.

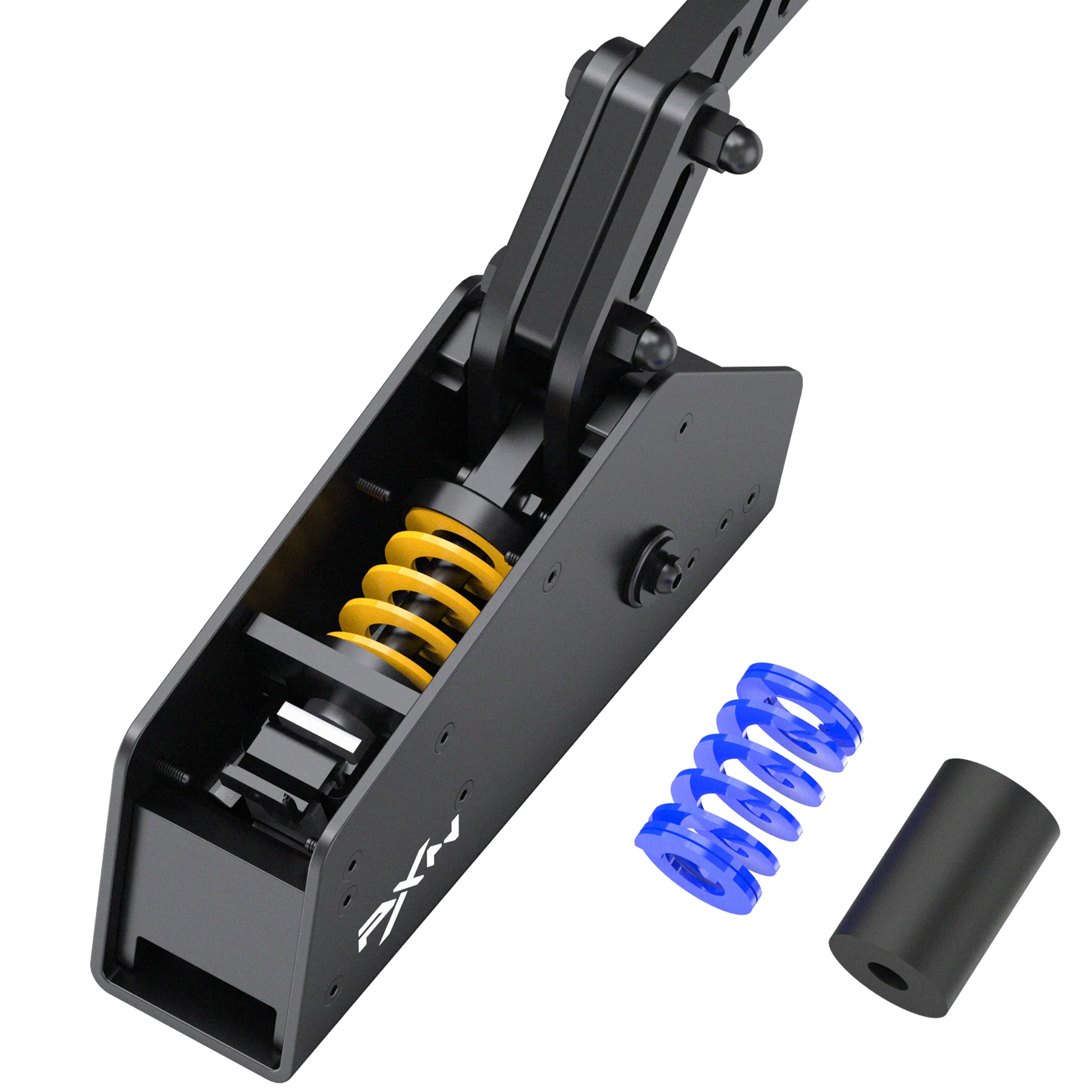

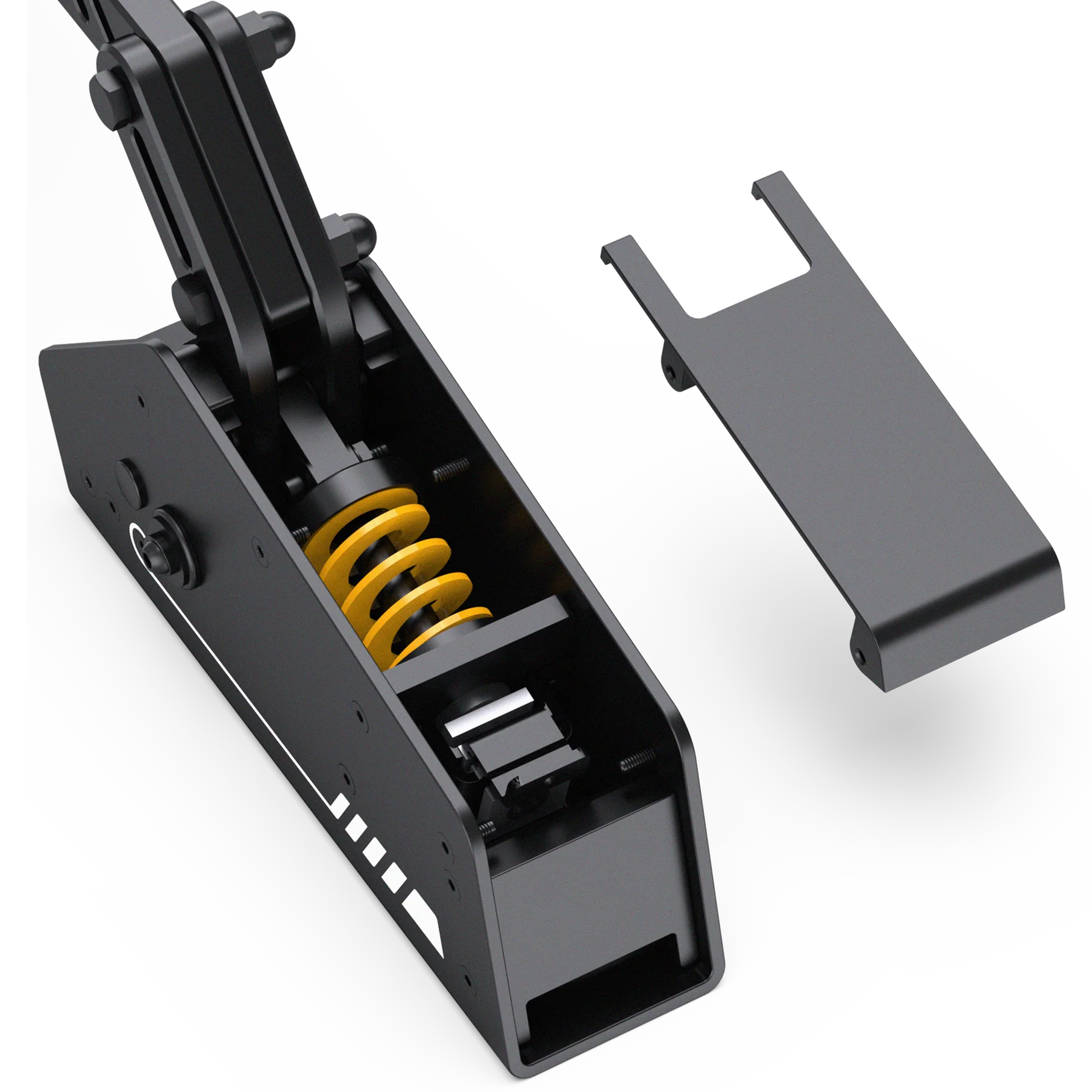

Intensity/ Stroke Adjustable
By replacing the spring damper system, users can adjust the size of the feedback force and the speed of the trigger stroke.
The device is more consistent with the arm during operation.
Dual Mode Grip Switching: You can switch between vertical and horizontal grips, with the horizontal mode being closer to the real car and the vertical mode being used in more scenarios. The handbrake is linear on both PC and XBOX side.

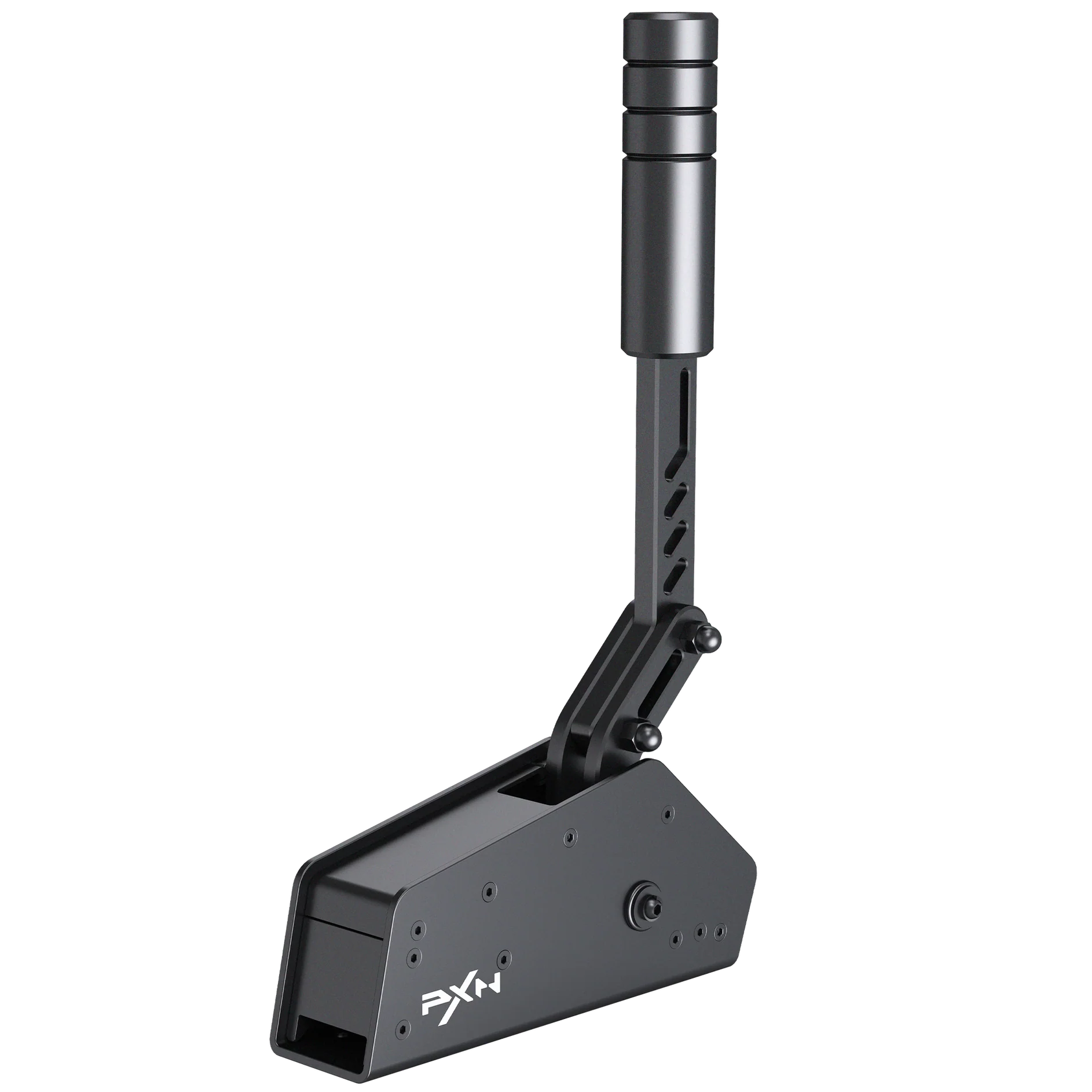

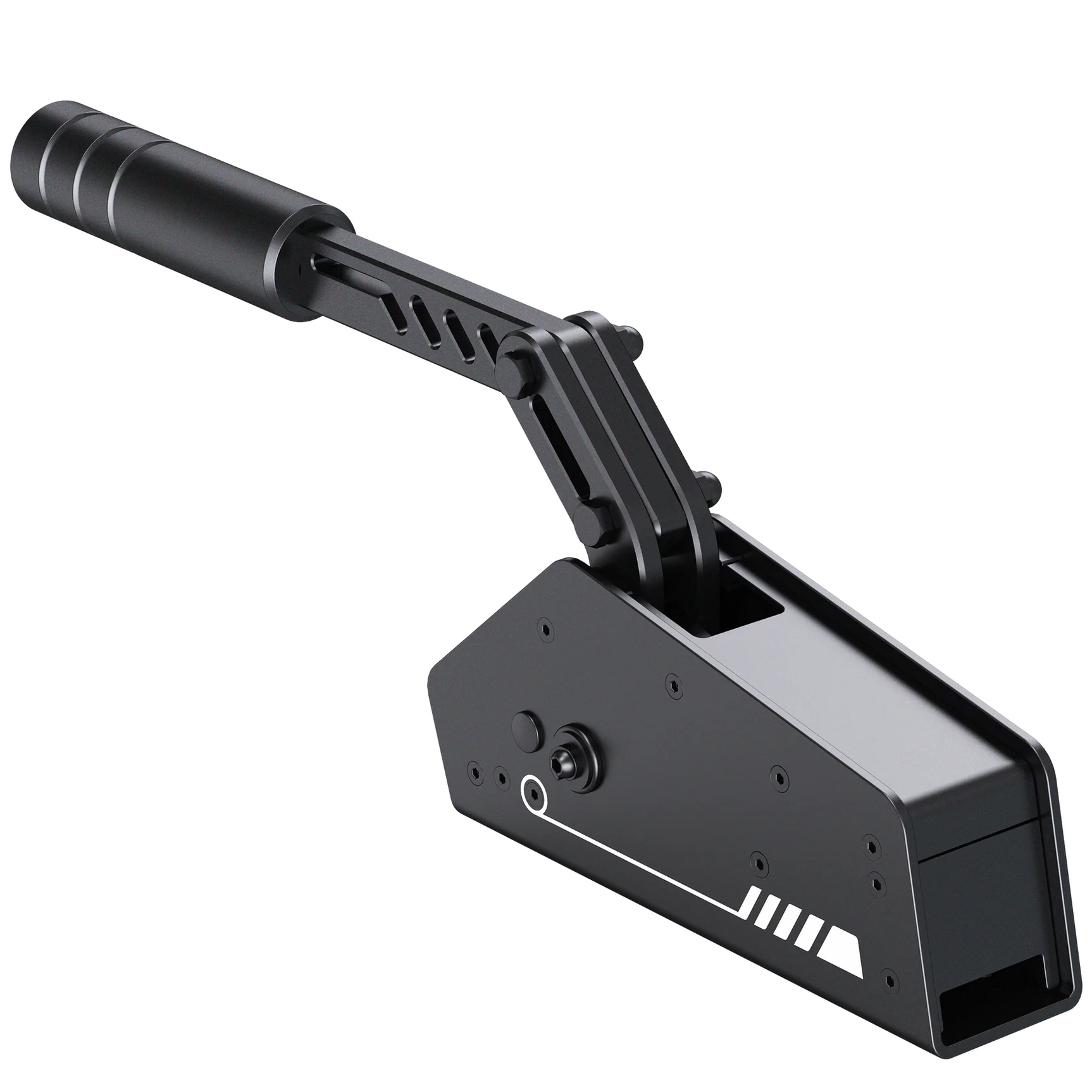

Vertical/ Horizontal Dual Mode
Vertical positioning for a racing car feel, horizontal positioning for a home car experience, easily switch according to game scenarios.
Note: Grip replacement supported, stay tuned for more customizable options.
PXN Exclusive Software Settings
Replace the handbrake function in the PXN exclusive software and set it as other functional buttons like ‘AXBY’ on the steering wheel for enhanced operational fun.
Better Compatible: The USB handbrake is supports PC platform plug and play. compatible with various models of sim racing steering wheel on PC Windows. Support for PXN V3 V900 V9 V10 V12 and Logitech G27 G29 G920 G923 T500 T300. Soft remind: Only compatible with PC Windows.
Product Parameters
- Model: PXN HBS
- Material: Aluminum Alloy
- Size: About 313*178*46mm
- Mounting hole: M5 Screws
- Connection Method: Wired Connection
- Operating Voltage: USB Power Supply: 5V
- Operating Current: USB Operating Current: 50mA
- Product Weight: About 900 grams
