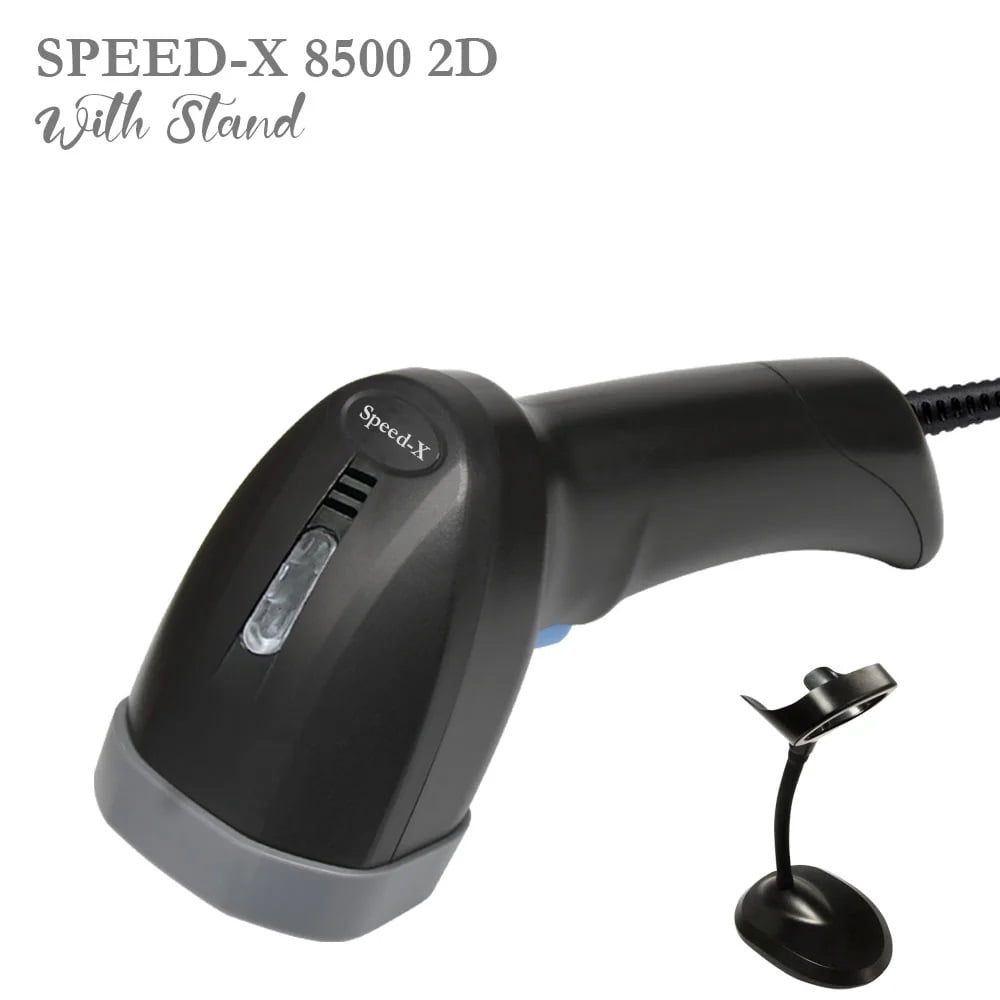

SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER (Plug and Play USB Cable) –
Detail:
CMI-8010
2D Wire CMOS Handheld Barcode Scanner
Technical Parameters
Electrical Characteristics
Interface USB HID KEYBOARD/USB VCP
Voltage requirement 5VDC±10%
Current consumption Max:120mA
Optical Characteristics
Photo sensor CMOS array sensor
SENSOR RESOLUTION 648X488 pixels
Light source White LED*1
Aim light source Red Bar led
Performance Characteristics
Decode angle Pitch angle:±55°
Skew angle:±55°
Tilt angle:±180°
Min resolution 1D:4mil(0.127)
Min.PCS value 〉30%UPC/EAN 13（13mil）
Language multiple languages
Field of View 20°(H),21°(V)
Identification 1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI
2D：QR, PDF417，Data Matrix
Physical Characteristics
Dimensions 67 mm H x97 mm W x165 mm D
Weight 122.8g
Environmental Characteristics
Temp -20°to 60°C / -4°to 140°F((operation) ) -40°-to 80°C /-40°to 176°F(storage)
Humidity 5 – 95% (operation) ) 5 – 95% (storage)
Shock drop test 1.5m drop onto concrete surface
Ambient Light: fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max
Regulatory
Electrical Safety UL 60950，EN/IEC 60950
EMI/RFI FCC Part 15 Class B,EN 55024/CISPR 22
Environmental RoHS
Depth of field
Symbology Resolution(mm) Depth of field
Code39 5.0 mil 40mm–90mm
100% UPCA 15.0mil 40mm—250mm
Code 39 15.0mil 40mm–250mm
Code 93 10.0mil 40mm–210mm
